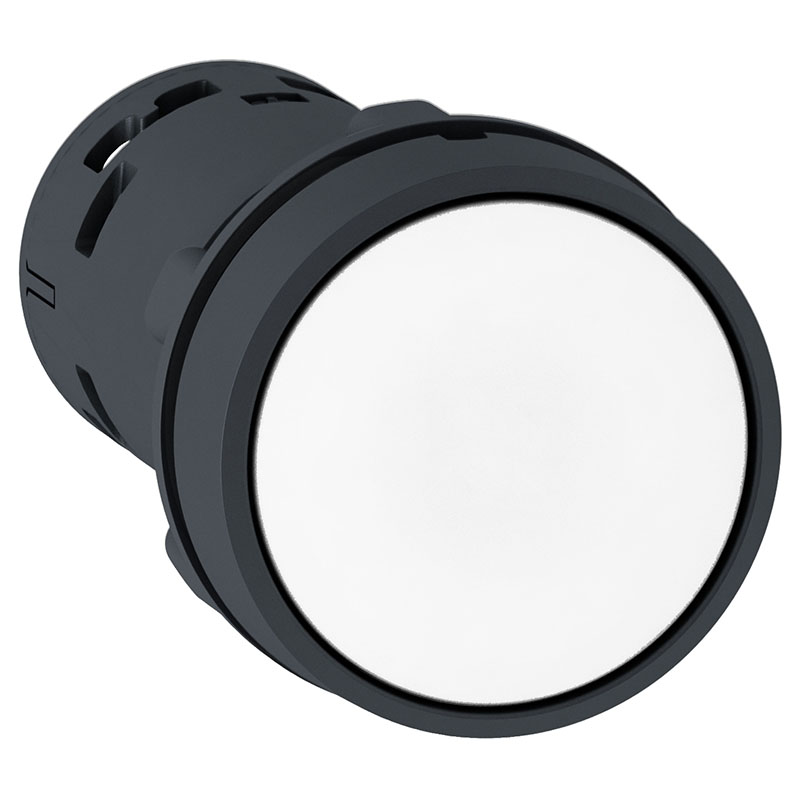

Schneider XB7-NA11 Yaylı Buton Çözümleri

range of product	Harmony XB7
product or component type	Push-button
device short name	XB7
mounting diameter	22 mm
sale per indivisible quantity	10
IP degree of protection	IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529
shape of signaling unit head	Round
type of operator	spring return
operator profile	White flush, unmarked
contacts type and composition	1 NO
connections – terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.34…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
device presentation	Monolithic product
