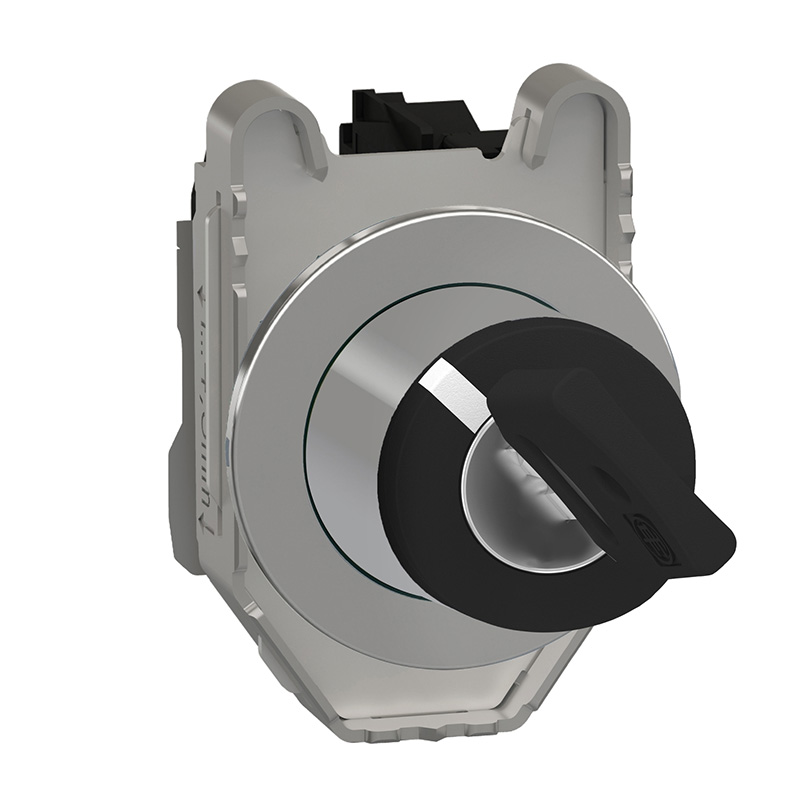

Schneider XB4-FG21 Kilitli Buton Çözümleri

range of product	Harmony XB4
product or component type	Selector switch
device short name	XB4F
bezel material	Chromium plated metal
fixing collar material	Zamak
mounting diameter	30.5 mm
sale per indivisible quantity	1
head type	Built-in-flush
shape of signaling unit head	Round
type of operator	stay put
operator profile	Black key switch
operator position information	2 positions 90°
contacts type and composition	1 NO
contact operation	Slow-break
connections – terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1
