| range |
TeSys
|
|
|---|---|---|
| product name |
TeSys GV5
|
|
| device short name |
GV5P
|
|
| product or component type |
Motor circuit breaker
|
|
| device application |
Motor protection
|
|
| protection type |
Overload protection
Short-circuit protection Instantaneous short-circuit protection Phase unbalance Phase loss |
|
| utilisation category |
Category A conforming to IEC 60947-2
|
|
| control type |
Direct rotary handle
|
|
| suitability for isolation |
Yes conforming to EN/IEC 60947-2
|
|
| poles description |
3P
|
|
| [Ue] rated operational voltage |
690 V AC 50/60 Hz
|
|
| [In] rated current |
220 A at 65 °C
|
|
| Breaking capacity code |
H 70 kA
|
|
| breaking capacity |
70 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ics] rated service short-circuit breaking capacity |
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 |
|
| [Ui] rated insulation voltage |
800 V AC 50/60 Hz conforming to IEC 60947-2
|
|
| [Uimp] rated impulse withstand voltage |
8 kV
|
|
| overvoltage category |
III
|
|
| trip unit name |
Micrologic 2.2 M
|
|
| trip unit rating |
220 A
|
|
| trip unit technology |
Electronic
|
|
| magnetic tripping current |
3300 A
|
|
| [Isd] short-time pick-up adjustment range |
5…13 x Ir adjustable 9 settings
|
|
| thermal protection adjustment range |
100…220 A adjustable 9 settings
|
|
| thermal overload class |
Class 5 conforming to IEC 60947-4-1
Class 10 conforming to IEC 60947-4-1 Class 20 conforming to IEC 60947-4-1 |
|
| phase failure sensitivity |
Yes conforming to IEC 60947-4-1
|
|
| mechanical durability |
20000 cycles
|
|
| electrical durability |
10000 cycles for AC-3 at 400/415 V In
|
|
| maximum operating rate |
25 cyc/h
|
|
| rated duty |
Continuous
|
|
| power dissipation per pole |
17.6 W
|

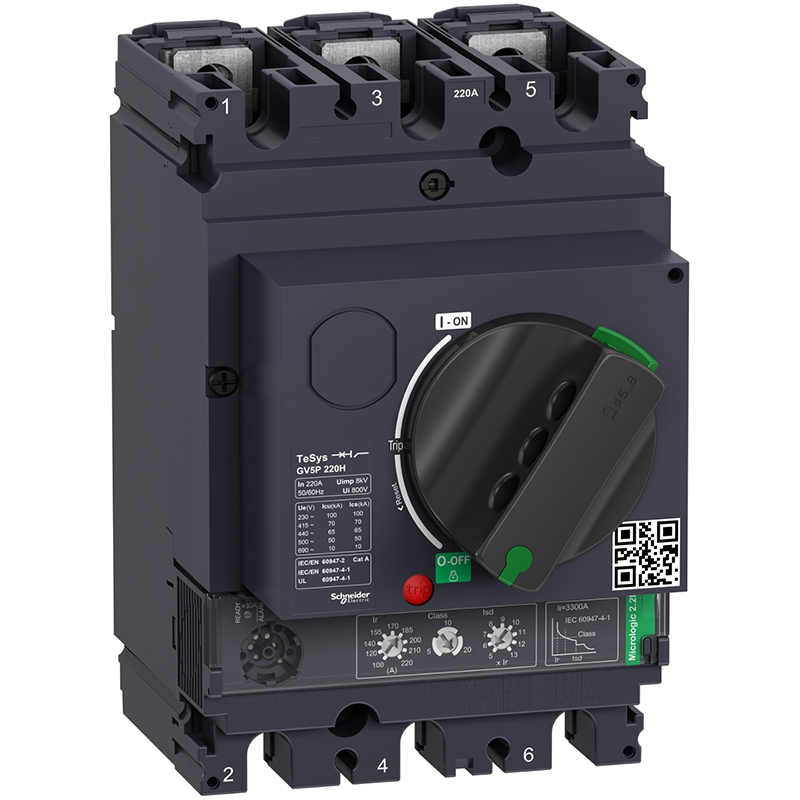

Schneider GV5-P220H TeSys Motor Koruma Şalter Çözümleri
