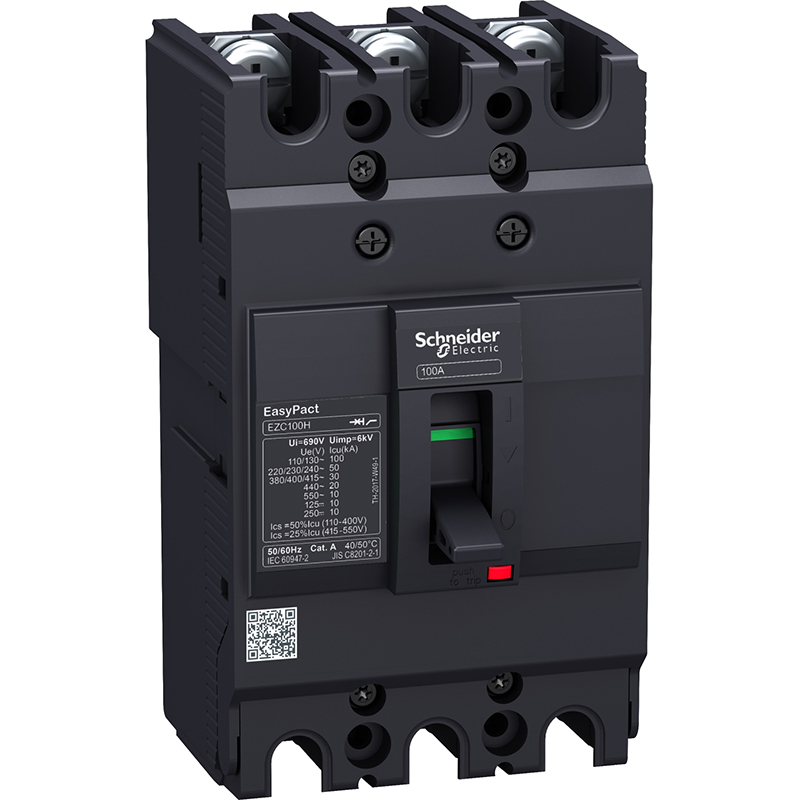

Schneider EZC100H3025 EasyPact EZC Sabit Termik Manyetik Koruma Şalter Çözümleri

EasyPact

Devre kesici

Easypact EZC100H

Easypact EZC100H

Dağıtım

3P

3t

DC
AC

50/60 Hz

100 A at 40 °C

690 V AC 50/60 Hz ‘e uygunIEC 60947-2

6 kV ‘e uygunIEC 60947-2

550 V AC 50/60 Hz conforming to IEC 60947-2
250 V DC ‘e uygunIEC 60947-2

H

10 kA Icu at 125 V DC 1P conforming to IEC 60947-2
10 kA Icu at 250 V DC 2P conforming to IEC 60947-2
10 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 110…130 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu -de 220…240 V AC 50/60 Hz ‘e uygunIEC 60947-2
20 kA Icu -de 440 V AC 50/60 Hz ‘e uygunIEC 60947-2
30 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 400…415 V AC 50/60 Hz conforming to IEC 60947-2

15 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
5 kA at 125 V DC conforming to IEC 60947-2
5 kA at 250 V DC conforming to IEC 60947-2
50 kA at 110/130 V AC 50/60 Hz conforming to IEC 60947-2
50 kA -de 220/230/240 V AC 50/60 Hz ‘e uygunIEC 60947-2
5 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA at 550 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2

Yes conforming to IEC 60947-2

Kategori A

TM-D

Termal manyetik

25 A at 50 °C

Aşırı yük koruması
Kısa devre koruması

3 ‘e uygunIEC 60664-1
3 conforming to IEC 947-1
