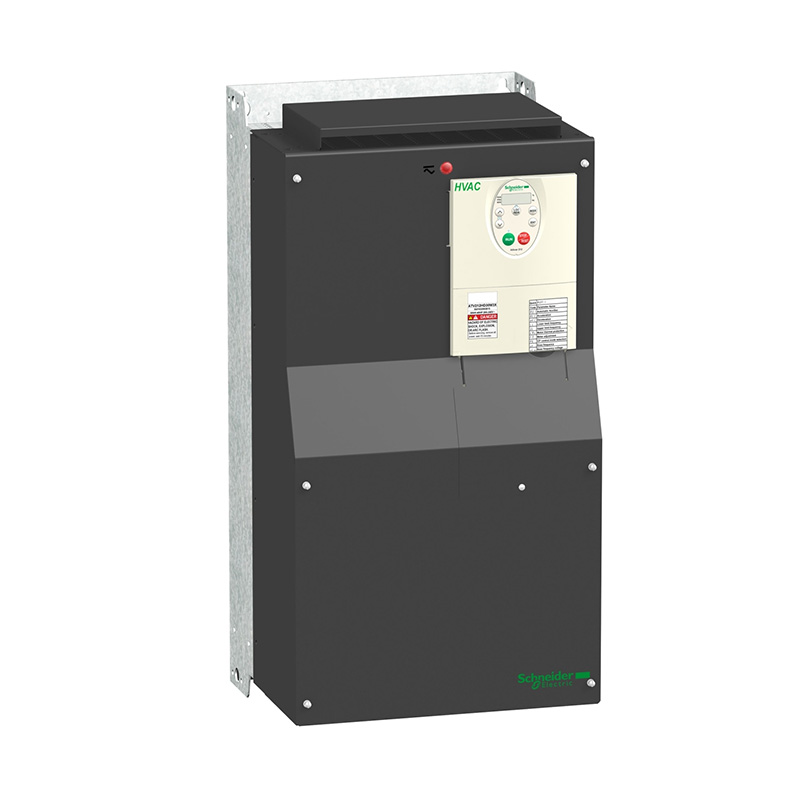

Schneider ATV212HD30N4 30kW Hız Kontrol Cihazı

range of product	Altivar 212
product or component type	Variable speed drive
device short name	ATV212
product destination	Asynchronous motors
product specific application	Pumps and fans in HVAC
assembly style	With heat sink
network number of phases	3 phases
motor power kW	30 kW
motor power hp	40 hp
[Us] rated supply voltage	380…480 V – 15…10 %
supply voltage limits	323…528 V
supply frequency	50…60 Hz – 5…5 %
EMC filter	Class C2 EMC filter integrated
line current	44.7 A at 480 V 56.7 A at 380 V
