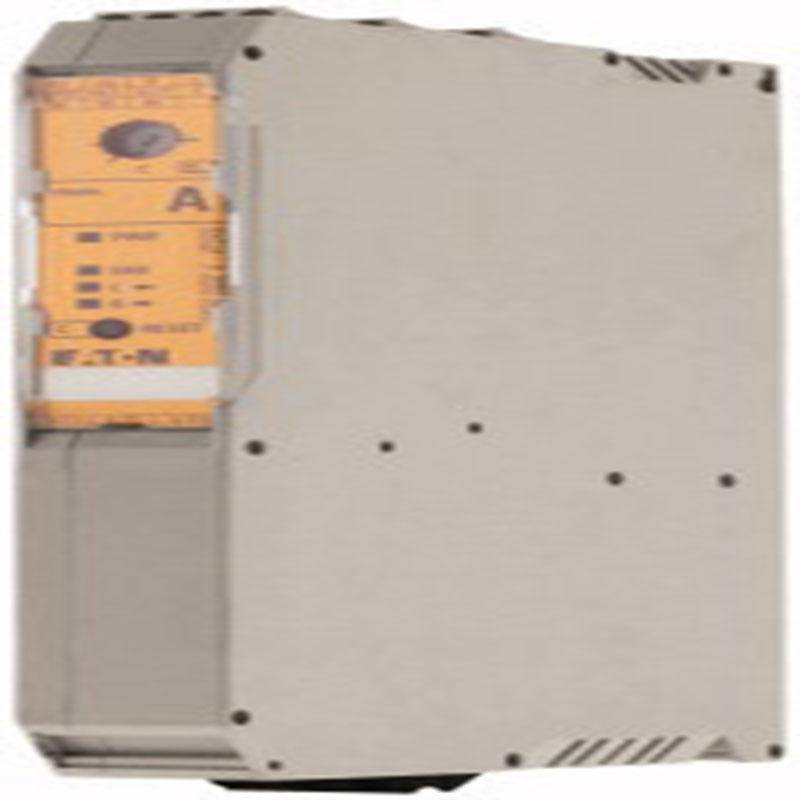

Eaton EMS2-ROSF-Z-9-24VDC 24VDC, Enversör, Acil Durdurma 1,5-9A Motor Kontrol Rölesi-Sigortalı

Reversing starter, 24 V DC, 1,5 – 7 (AC-53a), 9 (AC-51) A, Screw terminals, Controlled stop, PTB 19 ATEX 3000

Reversing starter, Product range: Electronic motor starter, Description: DOL starting, Reversing start, Motor protection, Circuit design: safety output stage with bypass, three-phase disconnect., Controlled stop via additional enable signal terminal up to SIL3/Ple., Conformity, Approval Explosion protection (according to ATEX 94/9/EC): II (2) G [Ex e] [Ex d] [Ex px], II (2) D [Ex t] [Ex p], Conformity, Approval EC-prototype test certification: PTB 13 ATEX 3003, Motor ratings Max. rating for three-phase motors, 50 – 60 Hz AC-53a 380 V 400 V 415 V: P= 0.55 – 3 kW, Setting range of overload releases: Ir= 1,5 – 9 A_x, Actuating voltage: 24 V DC, Connection technique: Screw terminals, Stop Function: Controlled stop, Connection to SmartWire-DT: no, Mounting position: Vertical, Motor feeder at bottom, Standards: IEC/EN 60947-4-2, IEC 61508, ISO 13849, UL508
